Plots

# Load data
resp_locked_data <- read.csv(file = "./data/response_locked_data_for_plots.csv", header = TRUE)


# Create relevant variables
resp_locked_data <- resp_locked_data %>%
  dplyr::mutate(
    stimulation = factor(ifelse(
      participant_id == "C_01_T1" | participant_id == "C_02_T1" | participant_id == "C_03_T2" |
      participant_id == "C_04_T2" | participant_id == "C_05_T1" | participant_id == "C_06_T2" |
      participant_id == "C_07_T1" | participant_id == "C_08_T1" | participant_id == "C_09_T2" |
      participant_id == "C_10_T2" | participant_id == "C_11_T2" | participant_id == "C_12_T2" |
      participant_id == "C_13_T1" | participant_id == "C_15_T2" | participant_id == "C_16_T1" |
      participant_id == "C_17_T2" | participant_id == "C_18_T2" | participant_id == "C_19_T1" |
      participant_id == "C_20_T1" | participant_id == "C_21_T2" | participant_id == "C_22_T2" |
      participant_id == "C_23_T1" | participant_id == "C_24_T1" | participant_id == "C_25_T1" |
      participant_id == "C_26_T1" | participant_id == "C_27_T2" | participant_id == "C_28_T2" |
      participant_id == "C_29_T1" | participant_id == "C_30_T2" | participant_id == "P_01_T1" |
      participant_id == "P_02_T2" | participant_id == "P_03_T2" | participant_id == "P_04_T1" |
      participant_id == "P_05_T1" | participant_id == "P_06_T1" | participant_id == "P_07_T2" |
      participant_id == "P_08_T2" | participant_id == "P_09_T2" | participant_id == "P_10_T1" |
      participant_id == "P_11_T2" | participant_id == "P_12_T2" | participant_id == "P_13_T1" |
      participant_id == "P_15_T1" | participant_id == "P_16_T1" | participant_id == "P_17_T2" |
      participant_id == "P_18_T1" | participant_id == "P_19_T1" | participant_id == "P_20_T2" |
      participant_id == "P_21_T2" | participant_id == "P_22_T1" | participant_id == "P_23_T1" |
      participant_id == "P_24_T2" | participant_id == "P_25_T1" | participant_id == "P_26_T2" |
      participant_id == "P_27_T1" | participant_id == "P_28_T2" | participant_id == "P_29_T2" |
      participant_id == "P_30_T1", "sham", "verum")),
    condition = factor(ifelse(condition == 1, "correct", "incorrect"),
                       levels = c("incorrect", "correct")),
    group          = factor(ifelse(substr(participant_id, 1, 1) == "C", "HC", "OCD")),
    session        = factor(ifelse(substr(participant_id, 6, 7) == "T1", "T1", "T2")),
    participant_id = factor(substr(participant_id, 1, 4)), # to get correct no. of factor levels
    condition      = factor(condition, levels = c("incorrect", "correct")),
  )


# Exclude P_02 and C_02
resp_locked_data <- resp_locked_data[resp_locked_data$participant_id != "P_02" &
                                     resp_locked_data$participant_id != "C_02", ]
resp_locked_data$participant_id <- droplevels(resp_locked_data$participant_id)


# Calculate running within-participant CIs for ERN/CRN
running_CIs_MFN <- resp_locked_data %>%
  split(.$time) %>%
  map(~ summarySEwithinO(data        = .,
                         measurevar  = "FCz",
                         withinvars  = c("condition", "stimulation"),
                         betweenvars = "group",
                         idvar       = "participant_id"))

CIs_MFN <- purrr::map_df(running_CIs_MFN, magrittr::extract) %>%
  dplyr::mutate(
    time = rep(unique(resp_locked_data$time), each = 8)
  ) # Note. 8 refers to  no. of conditions (group x stimulation x resp_type = 2 x 2 x 2 = 8)


# Calculate running within-participant CIs for Pe
running_CIs_Pe <- resp_locked_data %>%
  split(.$time) %>%
  map(~ summarySEwithinO(data        = .,
                         measurevar  = "Pz",
                         withinvars  = c("condition", "stimulation"),
                         betweenvars = "group",
                         idvar       = "participant_id"))

CIs_Pe <- purrr::map_df(running_CIs_Pe, magrittr::extract) %>%
  dplyr::mutate(
    time = rep(unique(resp_locked_data$time), each = 8)
  )


# Convert to long format for electrodes for ERN/CRN
data_topo_MFN <- resp_locked_data %>%
  # Remove channels of no interest
  dplyr::select(-IO1, -M1, -F9, -F10) %>%
  # Change from wide to long format for electrodes
  tidyr::gather(., electrode, amplitude, Fp1:O2, factor_key = TRUE)  %>%
  # Select time windows
  dplyr::filter(time >= 0 & time <= 100) %>%
  # Add electrode information
  electrode_locations(., electrode = "electrode", drop = FALSE, montage = NULL)


# Convert to long format for electrodes for Pe
data_topo_Pe <- resp_locked_data %>%
  # Remove channels of no interest
  dplyr::select(-IO1, -M1, -F9, -F10) %>%
  # Change from wide to long format for electrodes
  tidyr::gather(., electrode, amplitude, Fp1:O2, factor_key = TRUE)  %>%
  # Select time windows
  dplyr::filter(time >= 200 & time <= 400) %>%
  # Add electrode information
  electrode_locations(., electrode = "electrode", drop = FALSE, montage = NULL)

#### Create plots of predicted means ####

# Load LMM output
LMM_ERN <- readRDS(file = "./saved_objects_for_plots/LMM_ERN.rds")
LMM_CRN <- readRDS(file = "./saved_objects_for_plots/LMM_CRN.rds")
LMM_Pe  <- readRDS(file = "./saved_objects_for_plots/LMM_Pe.rds")


# ERN
plot_LMM_ERN <- plot_model(LMM_ERN, type = "pred", terms  = c("group", "stimulation"),
                           ci.lvl = .95, title = "", dodge = 0.4, line.size = .5) +
  labs(x  = "", y = "Predicted ERN Amplitude (µV)") +
  my_figure_theme +
  aes(color = group) +
  scale_color_manual(name = "tDCS", labels = c("sham", "cathodal"), values = colors_ERN) +
  coord_cartesian(ylim = c(-9, 3), xlim = c(0.5, 2.5)) +
  scale_y_continuous(breaks = seq(-9, 3, 2), expand = c(0, 0)) +
  scale_x_continuous(labels = c("HC", "OCD"), breaks = c(1, 2), expand = c(0, 0)) +
  theme(axis.ticks.x = element_blank(), legend.position = "none")


# CRN
plot_LMM_CRN <- plot_model(LMM_CRN, type = "pred", terms  = c("group", "stimulation"),
                           ci.lvl = .95, title = "", dodge = 0.4, line.size = .5) +
  labs(x  = "", y = "Predicted CRN Amplitude (µV)") +
  my_figure_theme +
  aes(color = group) +
  scale_color_manual(name = "tDCS", labels = c("sham", "cathodal"), values = colors_CRN) +
  coord_cartesian(ylim = c(1, 9), xlim = c(0.5, 2.5)) +
  scale_y_continuous(breaks = seq(1, 9, 2), expand = c(0, 0))  +
  scale_x_continuous(labels = c("HC", "OCD"), breaks = c(1, 2), expand = c(0, 0)) +
  theme(axis.ticks.x = element_blank(), legend.position = "none")


# Pe
plot_LMM_Pe <- plot_model(LMM_Pe,type = "pred", terms  = c("group", "stimulation"),
                          ci.lvl = .95, title = "", dodge = 0.4, line.size = .5) +
  labs(x  = "", y = "Predicted Pe Amplitude (µV)") +
  my_figure_theme +
  aes(color = group) +
  scale_color_manual(name = "tDCS", labels = c("sham", "cathodal"), values = colors_Pe) +
  coord_cartesian(ylim = c(5.8, 14), xlim = c(0.5, 2.5)) +
  scale_y_continuous(breaks = seq(6, 14, 2), expand = c(0, 0)) +
  scale_x_continuous(labels = c("HC", "OCD"), breaks = c(1, 2), expand = c(0, 0)) +
  theme(axis.ticks.x = element_blank(), legend.position = "none")


#### Create boxplots with probability density plots ####

# Load data
load(file = "./data/Single_Trial_Data.rda")


# Exclude missing responses, RT outliers, and trials with ERP artifacts
single_trial_data_clean <- single_trial_data %>%
  dplyr::filter(
      response_type != "miss" &
      rt_invalid    == FALSE &
      !is.na(MFN_0_100_FCz)
  ) # (53093 of 53760 trials left)


# Aggregate data
data_aggregated <- single_trial_data_clean %>%
  dplyr::group_by(participant_id, group, response_type, stimulation, session) %>%
  dplyr::summarize(
    MFN = mean(MFN_0_100_FCz, na.rm = TRUE),
    Pe  = mean(Pe_200_400_Pz, na.rm = TRUE)
   )  %>%
  dplyr::ungroup()


# ERN
plot_box_density_ERN <- ggplot() +
  geom_flat_violin(data = data_aggregated[data_aggregated$response_type == "incorrect", ],
                   aes(x = group, y = MFN, fill = stimulation),
                   position = position_nudge(x = .2, y = 0),
                   adjust = 1.5, trim = FALSE, alpha = .5, colour = NA) +
  geom_boxplot(data = data_aggregated[data_aggregated$response_type == "incorrect", ],
               aes(x = group, y = MFN, fill = stimulation),
               position = position_dodge(width = 0.3),
               outlier.shape = NA, width = .2, alpha = .8, colour = "black") +
  scale_fill_manual(values = colors_ERN, name = "tDCS:") +
  labs(x = "", y = "ERN Amplitude (µV)") +
  coord_cartesian(ylim = c(-35, 25), xlim = c(1.15, 2.25)) +
  scale_y_continuous(breaks = seq(-35, 25, 10), expand = c(0, 0)) +
  my_figure_theme  +
  theme(legend.position = "none", axis.ticks.x = element_blank())


# CRN
plot_box_density_CRN <- ggplot() +
  geom_flat_violin(data = data_aggregated[data_aggregated$response_type == "correct", ],
                   aes(x = group, y = MFN, fill = stimulation),
                   position = position_nudge(x = .2, y = 0),
                   adjust = 1.5, trim = FALSE, alpha = .5, colour = NA) +
  geom_boxplot(data = data_aggregated[data_aggregated$response_type == "correct", ],
               aes(x = group, y = MFN, fill = stimulation),
               position = position_dodge(width = 0.3),
               outlier.shape = NA, width = .2, colour = "black") +
  scale_fill_manual(values = colors_CRN, name = "tDCS:") +
  labs(x = "", y = "CRN Amplitude (µV)") +
  coord_cartesian(ylim = c(-15, 25), xlim = c(1.15, 2.25)) +
  scale_y_continuous(breaks = seq(-15, 25, 10), expand = c(0, 0)) +
  my_figure_theme  +
  theme(legend.position = "none", axis.ticks.x = element_blank(),
        axis.title.y = element_text(vjust = -1))


# Pe
plot_box_density_Pe <- ggplot() +
  geom_flat_violin(data = data_aggregated[data_aggregated$response_type == "incorrect", ],
                   aes(x = group, y = Pe, fill = stimulation),
                   position = position_nudge(x = .2, y = 0),
                   adjust = 1.5, trim = FALSE, alpha = .5, colour = NA) +
  geom_boxplot(data = data_aggregated[data_aggregated$response_type == "incorrect", ],
               aes(x = group, y = Pe, fill = stimulation),
               position = position_dodge(width = 0.3),
               outlier.shape = NA, width = .2, colour = "black") +
  scale_fill_manual(values = colors_Pe, name = "tDCS:") +
  labs(x = "", y = "Pe Amplitude (µV)") +
  coord_cartesian(ylim = c(-10, 30), xlim = c(1.15, 2.25)) +
  scale_y_continuous(breaks = seq(-10, 30, 10), expand = c(0, 0)) +
  my_figure_theme  +
  theme(legend.position = "none", axis.ticks.x = element_blank(),
        axis.title.y = element_text(vjust = -.5))


#### Create waveform plots ####

# Define facet labels
group.labs <- c("Healthy Control Participants ", "Patients With OCD")
names(group.labs) <- c("HC", "OCD")


# Define electrode labels
label_FCz <- data.frame(time = -320, FCz = 11.5, lab = "Text", group = factor("HC", levels = c("HC", "OCD")))
label_Pz  <- data.frame(time = -320, Pz  = 11.6, lab = "Text", group = factor("HC", levels = c("HC", "OCD")))


# ERN/CRN
plot_waveform_MFN <- ggplot(resp_locked_data, aes(time, FCz)) +
  stat_summary(fun = mean, geom = "line", size = 0.5, linetype = "solid", aes(colour = condition:stimulation)) +
  geom_ribbon(data = CIs_MFN, aes(ymin = FCz - ci, ymax = FCz + ci, fill = condition:stimulation), alpha = 0.2) +
  guides(fill = "none") +
  geom_segment(aes(x = 0, xend = 0, y = -10, yend = 12), linetype = "dotted", colour = "grey50") + # Add vline
  geom_segment(aes(x = -400, xend = 800, y = 0, yend = 0), linetype = "dotted", colour = "grey50") + # Add hline
  geom_text(data = label_FCz, label = "FCz") + #
  annotate("rect", xmin = 0, xmax = 100, ymin = -10, ymax = 12, alpha = .2, fill = "grey50") + # Add shaded time area
  coord_cartesian(ylim = c(-10, 12), xlim = c(-400, 800)) +
  scale_y_continuous(breaks = seq(-10, 12, 2), expand = c(0, 0)) +
  scale_x_continuous(breaks = seq(-400, 800, 200), expand = c(0, 0)) +
  scale_colour_manual(values = c(colors_ERN, colors_CRN),
                      labels = c("Error: Sham", "Error: Cathodal", "Correct: Sham", "Correct: Cathodal"),
                      guide = guide_legend(override.aes = list(size = 1.3))) + # Thickness legend lines
  scale_fill_manual(values = c(colors_ERN, colors_CRN)) +
  labs(x = "Time (ms)", y = expression(paste("Amplitude (", mu, "V)"))) +
  facet_rep_grid(cols = vars(group), labeller = labeller(group = group.labs), repeat.tick.labels = TRUE) +
  my_figure_theme +
  theme(strip.text.x = element_text(margin = margin(0, 0, 4, 0, "cm"), size = 12, face = "bold"),
        axis.title.y = element_text(vjust = -1.5), panel.spacing = unit(0.75, "cm"),
        legend.title = element_blank(), legend.text = element_text(size = 11))

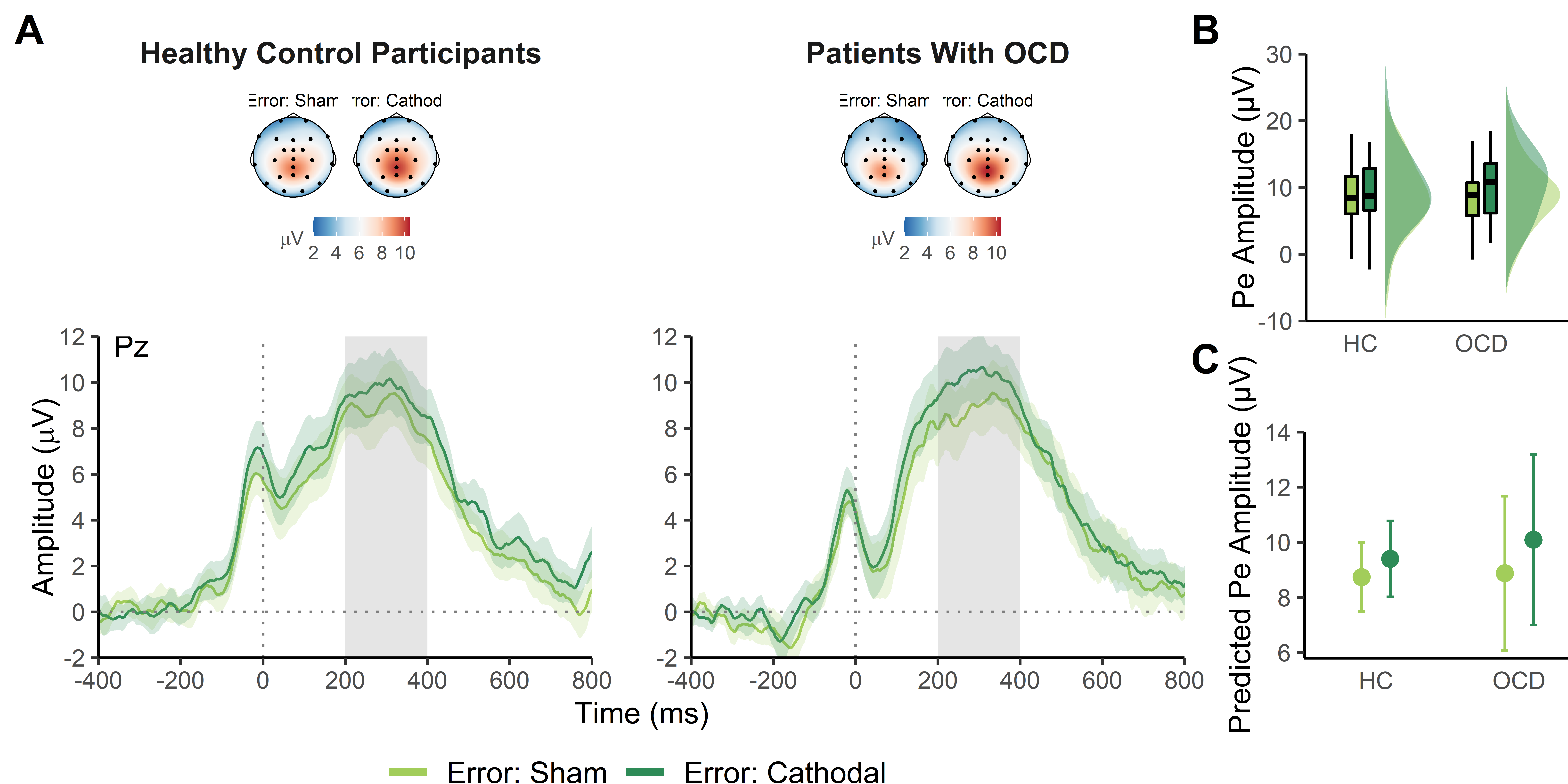

# Pe
plot_waveform_Pe <- ggplot(resp_locked_data[resp_locked_data$condition == "incorrect", ], aes(time, Pz)) +
  stat_summary(fun = mean, geom = "line", size = 0.5, linetype = "solid", aes(colour = condition:stimulation)) +
  geom_ribbon(data = CIs_Pe[CIs_Pe$condition == "incorrect", ],
              aes(ymin = Pz - ci, ymax = Pz + ci, fill = condition:stimulation), alpha = 0.2) +
  guides(fill = "none") +
  geom_segment(aes(x = 0, xend = 0, y = -2, yend = 12), linetype = "dotted", colour = "grey50") +
  geom_segment(aes(x = -400, xend = 800, y = 0, yend = 0), linetype = "dotted", colour = "grey50") +
  geom_text(data = label_Pz, label = "Pz") +
  annotate("rect", xmin = 200, xmax = 400, ymin = -2, ymax = 12, alpha = .2, fill = "grey50") +
  coord_cartesian(ylim = c(-2, 12), xlim = c(-400, 800)) +
  scale_y_continuous(breaks = seq(-2, 12, 2), expand = c(0, 0)) +
  scale_x_continuous(breaks = seq(-400, 800, 200), expand = c(0, 0)) +
  scale_colour_manual(values = colors_Pe,
                      labels = c("Error: Sham", "Error: Cathodal"),
                      guide = guide_legend(override.aes = list(size = 1.3))) +
  scale_fill_manual(values = colors_Pe) +
  labs(x = "Time (ms)", y = expression(paste("Amplitude (", mu, "V)"))) +
  facet_rep_grid(cols = vars(group), labeller = labeller(group = group.labs), repeat.tick.labels = TRUE) +
  my_figure_theme +
  theme(strip.text.x = element_text(margin = margin(0, 0, 3.5, 0, "cm"), size = 11, face = "bold"),
        axis.title.y = element_text(vjust = -1.5), panel.spacing = unit(0.75, "cm"),
        legend.title = element_blank(), legend.text = element_text(size = 11))


# Get legend and remove individual legends from plot to create common legend
legend_MFN        <- get_legend(plot_waveform_MFN)
legend_Pe         <- get_legend(plot_waveform_Pe)
plot_waveform_MFN <- plot_waveform_MFN + theme(legend.position = "none")
plot_waveform_Pe  <- plot_waveform_Pe  + theme(legend.position = "none")


#### Create topography plots ####

# Define facet labels
stimulation.labs_incorr <- c("Error: Sham", "Error: Cathodal")
names(stimulation.labs_incorr) <- c("sham", "verum")

stimulation.labs_corr <- c("Correct: Sham", "Correct: Cathodal")
names(stimulation.labs_corr) <- c("sham", "verum")


# ERN HC
plot_topo_HC_ERN <- ggplot(data_topo_MFN[data_topo_MFN$group == "HC" & data_topo_MFN$condition == "incorrect", ],
  aes(x = x, y = y, fill = amplitude, label = electrode)) +
  geom_topo(grid_res = 300, interp_limit = "head", chan_markers = "point", chan_size = 0.1, head_size = 0.2) +
  scale_fill_distiller(palette = "RdBu", limits = c(-5.1, 6.5), breaks = c(-5, 0, 5)) + #
  theme_void() +
  coord_equal() +
  labs(fill = expression(paste(mu, "V"))) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7, color = "grey30"),
        legend.title = element_text(size = 7, color = "grey30"), legend.key.height = unit(0.25, 'cm'),
        legend.key.width = unit(0.25, 'cm'), strip.text.x = element_text(size = 7)) +
  facet_grid(cols = vars(stimulation), labeller = labeller(stimulation = stimulation.labs_incorr))


# ERN OCD
plot_topo_OCD_ERN <- ggplot(data_topo_MFN[data_topo_MFN$group == "OCD" & data_topo_MFN$condition == "incorrect", ],
  aes(x = x, y = y, fill = amplitude, label = electrode)) +
  geom_topo(grid_res = 300, interp_limit = "head", chan_markers = "point", chan_size = 0.1, head_size = 0.2) +
  scale_fill_distiller(palette = "RdBu", limits = c(-5.1, 6.5), breaks = c(-5, 0, 5)) + #
  theme_void() +
  coord_equal() +
  labs(fill = expression(paste(mu, "V"))) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7, color = "grey30"),
        legend.title = element_text(size = 7, color = "grey30"), legend.key.height = unit(0.25, 'cm'),
        legend.key.width = unit(0.25, 'cm'), strip.text.x = element_text(size = 7)) +
  facet_grid(cols = vars(stimulation), labeller = labeller(stimulation = stimulation.labs_incorr))


# CRN HC
plot_topo_HC_CRN <- ggplot(data_topo_MFN[data_topo_MFN$group == "HC" & data_topo_MFN$condition == "correct", ],
  aes(x = x, y = y, fill = amplitude, label = electrode)) +
  geom_topo(grid_res = 300, interp_limit = "head", chan_markers = "point", chan_size = 0.1, head_size = 0.2) +
  scale_fill_distiller(palette = "RdBu", limits = c(0.5, 11.7), breaks = c(2, 6, 10)) + #
  theme_void() +
  coord_equal() +
  labs(fill = expression(paste(mu, "V"))) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7, color = "grey30"),
        legend.title = element_text(size = 7, color = "grey30"), legend.key.height = unit(0.25, 'cm'),
        legend.key.width = unit(0.25, 'cm'), strip.text.x = element_text(size = 7)) +
  facet_grid(cols = vars(stimulation), labeller = labeller(stimulation = stimulation.labs_corr))


# CRN OCD
plot_topo_OCD_CRN <- ggplot(data_topo_MFN[data_topo_MFN$group == "OCD" & data_topo_MFN$condition == "correct", ],
  aes(x = x, y = y, fill = amplitude, label = electrode)) +
  geom_topo(grid_res = 300, interp_limit = "head", chan_markers = "point", chan_size = 0.1, head_size = 0.2) +
  scale_fill_distiller(palette = "RdBu", limits = c(0.5, 11.7), breaks = c(2, 6, 10)) + #
  theme_void() +
  coord_equal() +
  labs(fill = expression(paste(mu, "V"))) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7, color = "grey30"),
        legend.title = element_text(size = 7, color = "grey30"), legend.key.height = unit(0.25, 'cm'),
        legend.key.width = unit(0.25, 'cm'), strip.text.x = element_text(size = 7)) +
  facet_grid(cols = vars(stimulation), labeller = labeller(stimulation = stimulation.labs_corr))


# Pe HC
plot_topo_HC_Pe <- ggplot(data_topo_Pe[data_topo_Pe$group == "HC" & data_topo_Pe$condition == "incorrect", ],
  aes(x = x, y = y, fill = amplitude, label = electrode)) +
  geom_topo(grid_res = 300, interp_limit = "head", chan_markers = "point", chan_size = 0.1, head_size = 0.2) +
  scale_fill_distiller(palette = "RdBu", limits = c(2, 10.4)) +
  theme_void() +
  coord_equal() +
  labs(fill = expression(paste(mu, "V"))) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7, color = "grey30"),
        legend.title = element_text(size = 7, color = "grey30"), legend.key.height = unit(0.25, 'cm'),
        legend.key.width = unit(0.25, 'cm'), strip.text.x = element_text(size = 6.5)) +
  facet_grid(cols = vars(stimulation), labeller = labeller(stimulation = stimulation.labs_incorr))


# Pe OCD
plot_topo_OCD_Pe <- ggplot(data_topo_Pe[data_topo_Pe$group == "OCD" & data_topo_Pe$condition == "incorrect", ],
  aes(x = x, y = y, fill = amplitude, label = electrode)) +
  geom_topo(grid_res = 300, interp_limit = "head", chan_markers = "point", chan_size = 0.1, head_size = 0.2) +
  scale_fill_distiller(palette = "RdBu", limits = c(2, 10.4)) +
  theme_void() +
  coord_equal() +
  labs(fill = expression(paste(mu, "V"))) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7, color = "grey30"),
        legend.title = element_text(size = 7, color = "grey30"), legend.key.height = unit(0.25, 'cm'),
        legend.key.width = unit(0.25, 'cm'), strip.text.x = element_text(size = 6.5)) +
  facet_grid(cols = vars(stimulation), labeller = labeller(stimulation = stimulation.labs_incorr))

ERN & CRN

---

This figure corresponds to Figure 1 in the manuscript.

# Overlay waveforms and topopgraphy plots
aligned_plots1_MFN <- align_plots(plot_waveform_MFN, plot_topo_HC_ERN,  axis = "tr")
aligned_plots2_MFN <- align_plots(plot_waveform_MFN, plot_topo_HC_CRN,  axis = "tr")
aligned_plots3_MFN <- align_plots(plot_waveform_MFN, plot_topo_OCD_ERN, axis = "tr")
aligned_plots4_MFN <- align_plots(plot_waveform_MFN, plot_topo_OCD_CRN, axis = "tr")


# Arrange plots
figure_ERN_CRN <- ggdraw() +
  draw_plot(aligned_plots1_MFN[[1]],  x =  0,   y = .42,  width = .99, height = .56) +
  draw_plot(aligned_plots1_MFN[[2]],  x = .073, y = .795, width = .2,  height = .15) +
  draw_plot(aligned_plots2_MFN[[2]],  x = .293, y = .795, width = .2,  height = .15) +
  draw_plot(aligned_plots3_MFN[[2]],  x = .563, y = .795, width = .2,  height = .15) +
  draw_plot(aligned_plots4_MFN[[2]],  x = .783, y = .795, width = .2,  height = .15) +
  draw_plot(legend_MFN,               x = .318, y = .4,   width = .4,  height = .01) +
  draw_plot(plot_box_density_ERN,     x = .01,  y = .04,  width = .3,  height = .29) +
  draw_plot(plot_LMM_ERN,             x = .6,   y = .04,  width = .2,  height = .32) +
  draw_plot(plot_box_density_CRN,     x = .3,   y = .04,  width = .3,  height = .29) +
  draw_plot(plot_LMM_CRN,             x = .8,   y = .04,  width = .2,  height = .32) +
  draw_plot(legend_MFN,               x = .318, y = .035, width = .4,  height = .01) +
  draw_plot_label(c("A", "B", "C"), c(0, 0, .59), c(1, .36, .36), size = 15)
figure_ERN_CRN

Note. (A) Response-locked grand average waveforms with 95% confidence intervals (CIs) for correct and incorrect responses at electrode site FCz in the sham and cathodal tDCS condition for patients with OCD and HC participants, along with topographies of ERN and CRN (0–100 ms). Gray-shaded areas in the waveform plots indicate the time window used for ERN and CRN quantification. (B) ERN and CRN mean amplitude values per group and tDCS condition are presented as boxplots and probability density plots based on raw data. (C) Predicted ERN and CRN mean amplitude values by group and tDCS condition, calculated as partial effects from linear mixed models. Error bars represent 95% CIs.

# Save plot
ggsave(plot = figure_ERN_CRN, "./figures/figure_ERN_CRN.tiff", width = 20, height = 24,
       units = "cm", dpi = 600, compression = "lzw")

Pe

---

This figure corresponds to Figure S1 in the supplemental material.

# Overlay waveforms and tpopgraphy plots
aligned_plots1_Pe  <- align_plots(plot_waveform_Pe, plot_topo_HC_Pe,  axis = "tr")
aligned_plots2_Pe  <- align_plots(plot_waveform_Pe, plot_topo_OCD_Pe, axis = "tr")


# Arrange plots
figure_Pe <- ggdraw() +
  draw_plot(aligned_plots1_Pe[[1]], x =  0,   y = .05,  width = .765, height = .92) +
  draw_plot(aligned_plots1_Pe[[2]], x = .07,  y = .664, width = .3,   height = .22) +
  draw_plot(aligned_plots2_Pe[[2]], x = .447, y = .664, width = .3,   height = .22) +
  draw_plot(plot_box_density_Pe,    x = .77,  y = .48,  width = .25,  height = .47) +
  draw_plot(plot_LMM_Pe,            x = .774, y = .05,  width = .25,  height = .48) +
  draw_plot(legend_Pe,              x = .3,   y = .01,  width = .2,   height = .01) +
  draw_plot_label(c("A", "B", "C"), c(0, .75, .75), c(1, 1, .58), size = 15)
figure_Pe

Note. (A) Response-locked grand average waveforms with 95% confidence intervals (CIs) for incorrect responses at electrode site Pz in the sham and cathodal tDCS condition for patients with OCD and HC participants, along with topographies of the Pe (200–400 ms). Gray-shaded areas in the waveform plots indicate the time window used for Pe quantification. (B) Pe mean amplitude values per group and tDCS condition are presented as boxplots and probability density plots based on raw data. (C) Predicted Pe mean amplitude values by group and tDCS condition, calculated as partial effects from linear mixed models. Error bars represent 95% CIs.

# Save plot
ggsave(plot = figure_Pe, "./figures/figure_Pe.tiff", width = 20, height = 12,
       units = "cm", dpi = 600, compression = "lzw")

Session Info

---

sessionInfo()

R version 3.6.1 (2019-07-05)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 19044)

Matrix products: default

locale:
[1] LC_COLLATE=German_Germany.1252  LC_CTYPE=German_Germany.1252
[3] LC_MONETARY=German_Germany.1252 LC_NUMERIC=C
[5] LC_TIME=German_Germany.1252

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] lmerTest_3.1-3 lme4_1.1-25    Matrix_1.2-17  plyr_1.8.6     lemon_0.4.5
 [6] sjPlot_2.8.6   tidyr_1.1.2    eegUtils_0.5.0 purrr_0.3.4    cowplot_1.1.0
[11] ggplot2_3.3.2  dplyr_1.0.6

loaded via a namespace (and not attached):
 [1] nlme_3.1-140         matrixStats_0.57.0   RColorBrewer_1.1-2
 [4] insight_0.14.0       httr_1.4.2           numDeriv_2016.8-1.1
 [7] backports_1.2.0      tools_3.6.1          utf8_1.1.4
[10] R6_2.5.0             sjlabelled_1.1.7     lazyeval_0.2.2
[13] mgcv_1.8-28          colorspace_1.4-1     withr_2.3.0
[16] tidyselect_1.1.0     gridExtra_2.3        emmeans_1.5.2-1
[19] compiler_3.6.1       performance_0.7.1.1  edfReader_1.2.1
[22] plotly_4.9.2.1       bayestestR_0.9.0     scales_1.1.1
[25] mvtnorm_1.1-1        stringr_1.4.0        digest_0.6.27
[28] minqa_1.2.4          rmarkdown_2.5        R.utils_2.10.1
[31] ini_0.3.1            pkgconfig_2.0.3      htmltools_0.5.0
[34] parallelly_1.22.0    fastmap_1.0.1        htmlwidgets_1.5.2
[37] rlang_0.4.11         shiny_1.5.0          farver_2.0.3
[40] generics_0.1.0       jsonlite_1.7.1       R.oo_1.24.0
[43] magrittr_2.0.1       R.matlab_3.6.2       parameters_0.13.0
[46] Rcpp_1.0.5           munsell_0.5.0        fansi_0.4.1
[49] abind_1.4-5          viridis_0.5.1        lifecycle_1.0.0
[52] R.methodsS3_1.8.1    stringi_1.5.3        yaml_2.2.1
[55] MASS_7.3-53          grid_3.6.1           parallel_3.6.1
[58] listenv_0.8.0        promises_1.1.1       sjmisc_2.8.5
[61] shinydashboard_0.7.1 crayon_1.3.4         miniUI_0.1.1.1
[64] lattice_0.20-38      ggeffects_0.16.0     splines_3.6.1
[67] sjstats_0.18.0       knitr_1.30           pillar_1.6.0
[70] boot_1.3-22          estimability_1.3     effectsize_0.4.0
[73] future.apply_1.6.0   codetools_0.2-16     glue_1.4.2
[76] evaluate_0.14        modelr_0.1.8         data.table_1.13.4
[79] renv_0.12.0          nloptr_1.2.2.2       vctrs_0.3.8
[82] httpuv_1.5.4         gtable_0.3.0         future_1.21.0
[85] xfun_0.19            mime_0.9             broom_0.7.2
[88] xtable_1.8-4         pracma_2.2.9         later_1.1.0.1
[91] viridisLite_0.3.0    signal_0.7-6         tibble_3.0.4
[94] statmod_1.4.35       globals_0.14.0       ellipsis_0.3.2
